Japan THK Rail Full Automatic Spray Coating Machine five axis

Product Categories
Shenzhen Songqi Robot Automation Equipment Co., Ltd
Contact Now

Japan THK Rail Full Automatic Spray Coating Machine five axis

Place of Origin : Guangdong, China

Brand Name : Songqi

Model Number : SQ300

Certification : ISO9001

Packaging Details : Packaging by wooden box

Supply Ability : 200 Set/Sets per Year

Price : Negotiable

MOQ : Negotiable

Payment Terms : D/P, D/A, L/C, T/T

Delivery Time : 15-20

Type : spray machine

Voltage : 110V/120V/127V/208V/220V /240V/380V/415V/460V

Power : 4kw

Dimension(L*W*H) : L2200*W2100*H1950mm

After-sales Service Provided : Engineers available to service machinery overseas

Equipment Name : full automatic spray painting machine

Installation location : spray booth

spray booth : stainless steel water spray curtain booth

Application : spray plastic parts

degree of freedom : five axis

pump : American GRACO 308 diaphragm pump

servo system : Japanese Panasonic servo sysetem

Contact Now

Japan THK Rail Full Automatic Spray Coating Machine Five Axis​

High efficient Full Automatic Spray Coating Machine

Control system
  1. Japanese OMRON PLC
  2. Taiwan WEINTEK Color industrial touch screen
  3. Schneider Electric switch and Power Supply
  4. Japanese OMRON relay

Drive system

Japanese Panasonic servo drive system

Transmission system

1. Aluminium profile module

2. Japan THK Linear guide rail

3. Japan THK Silent slide

4. Precision synchronous wheel

5. Italy Megadyne Synchronous belt with steel wire

6. positioning accuracy difference ±1mm

Product exchang platform
  1. Precision divider
  2. Taiwan CPG Gear motor

3. Japanese Mitsubishi frequency converter

Product rotation platform
  1. Precision divider

2.Can be 90 degrees, 180 degrees rotation, continuous rotation

Spray gun

Japanese ANEST IWATA

Paint supply system
  1. Amercian GRACO 308 diaphragm pump
  2. Pneumatic agitator produce from Taiwan,China
  3. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge

Power supply

AC220V50HZ, Single phase three wire

The detailed configuration of the robot has written in the form, you can see our automatic spraying painting machine's configuration is high ,so the failure rate of machine is very low. If i were you ,i would buy a high quality machine if i want to buy a machine from abroad. Then, why don't you choose us?

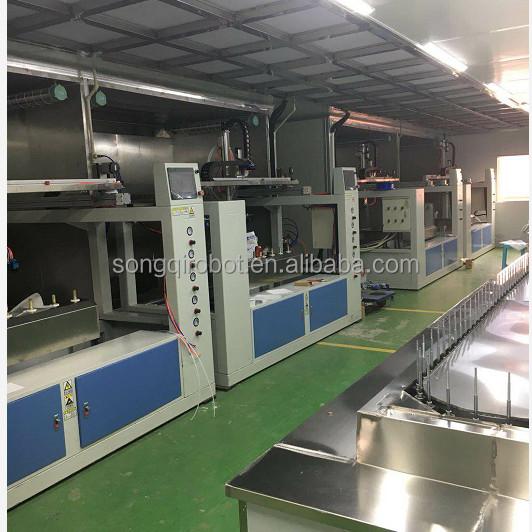

Japan THK Rail Full Automatic Spray Coating Machine five axis

Japan THK Rail Full Automatic Spray Coating Machine five axis

Japan THK Rail Full Automatic Spray Coating Machine five axis

Japan THK Rail Full Automatic Spray Coating Machine five axis

Japan THK Rail Full Automatic Spray Coating Machine five axis

Japan THK Rail Full Automatic Spray Coating Machine five axis

Japan THK Rail Full Automatic Spray Coating Machine five axis

FAQ:

Question 1: I don't know anything about the machine. Will you provide the technical support?

Answer: Sure. Every machine will be test before delivery. We will make sure there is no problem for the machine.
You may send 2-3 smart workers to come to our factory to learn how to operate the machine.
When the machine arrives your factory, we will send the experts to your factory to help for installation. Operation training will be provide. It may take about 20-30 days. Maintenance tips will be given.
Also, we provide consulting service for creating the proper facilities for running the machine.

Question 2: What is price of the machine?

Answer: The machine is custom made. If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please tell us the max. dimension of your products, its application, and your desired daily capacity.
We will provide our professional suggestions and work out an appropriate design for your project.

Question 3: What kind of pre-treatment I need to do before loading to reciprocator?

Answer: the products have to be CLEAN AND DRY.

Question 4: Is it safe to operate the machine?

Answer: The machine provides security setup and all mechanical units can be controlled from touch screen. So the machine itself is very safe to use.


Product Tags:

THK Automatic Spray Coating Machine



5Axis Automatic Spray Coating Machine



THK auto painting machine


China Japan THK Rail Full Automatic Spray Coating Machine five axis factory
